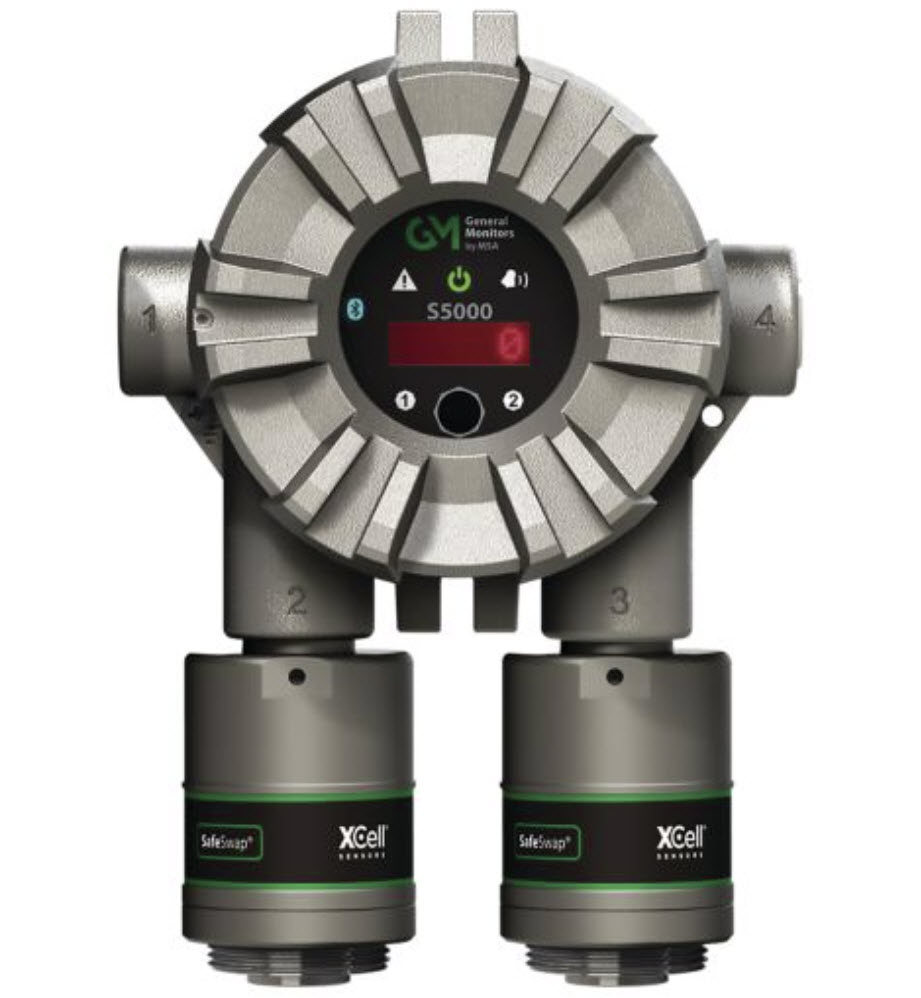

General Monitors® S5000 Gas Monitor by MSA
The General Monitors S5000 Gas Monitor is the ultimate gas detector for extreme environments needing to detect oxygen, toxic and combustible gases
It operates over a wide temperature range using a variety of gas sensing technologies. Breakthrough XCell® gas sensors with TruCal® technology extends calibration cycles up to 24 months and actively monitors sensor integrity for ultimate peace of mind.
- TruCal actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift. 1) Worry-free operation; automatically self-checks 4x/day, 2) Reduces downtime, 3) An industry first, Diffusion Supervision warns if sensor inlet becomes blocked and unable to detect gas
- Wide operating temperature for extreme environments (-55°C to +75°C)
- Bluetooth wireless technology allows mobile device to act as an HMI screen and controller. The X/S Connect App is designed with high security standards and provides real-time information to your mobile device. 1) Check status and get alerts up to 23 m (75 ft) away, 2) Reduces set up time by at least 50%
- Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter
- SafeSwap enables safe and quick replacement of XCell sensors without turning off the instrument
- Instrument status indicators illuminates power, fault and alarm conditions
- Intuitive user experience with an industry first touch-button interface or familiar magnetic interface
- Identical footprint and wiring to the S4000 series, making retrofits simple using the existing conduit and wiring
- Cloud connectivity available with FieldServer ProtoAir FGFD Gateway
Applications
- Compressor stations
- CNG maintenance facilities
- Drilling and production platforms
- Fuel loading facilities
- LNG/LPG processing and storage
- Oil well logging
- Petrochemical
- Refineries
| Product Specifications | |
| COMBUSTIBLE GAS SENSOR TYPE | Catalytic bead (Passive comb., XCell comb.) Infrared (IR400) |
| TOXIC GAS & OXYGEN SENSOR TYPE | XCell Toxic Ammonia (NH3), Carbon Monoxide (CO), Carbon Monoxide (CO) H2-resistant, Chlorine (Cl2), Sulfur Dioxide (SO2) Chlorine Dioxide (ClO2) Passive MOS, Echem, XCell Toxic Hydrogen Sulfide (H2S) XCell O2 Oxygen (O2) Electrochem Ammonia (NH3), Ethylene Oxide (ETO), Hydrogen (H2), Hydrogen Chloride (HCl), Hydrogen Cyanide (HCN), Hydrogen Fluoride (HF), Nitric Oxide (NO), Nitrogen Dioxide (NO2) |
| SENSOR MEASURING RANGES | Combustible 0-100% LEL (CB, IR) Cl2 0-5, 0-10, 0-20 ppm ClO2 0-3 ppm CO 0-100, 0-500, 0-1000 ppm CO, H2-resistant 0-100 ppm ETO 0-10 ppm H2 0-1000 ppm HCl 0-50 ppm HCN 0-50 ppm HF 0-10 ppm H2S 0-10, 0-20, 0-50, 0-100, 0-500 ppm NH3 0-100 ppm, 0-1000 ppm NO 0-100 ppm NO2 0-10 ppm O2 0-25% SO2 0-25, 0–100 ppm |
| CLASSIFICATIONS | DIVISIONS (US/CAN) Class I, Div/Zone 1&2, Groups A, B, C & D T5/T4; Class II, Div/Zone 1&2, Groups E, F & G, T6; Class III Type 4X, IP66 US ZONES Class I, Zone 1 AEx db IIC T5 Gb Class I, Zone 2 AEx nA nC IIC T4 Gc Zone 21 AEx tb IIIC T85°C Db CANADIAN ZONES/ ATEX/IECEx Ex db IIC T5 Gb Ex nA nC IIC T4 Gc Ex tb IIIC T85°C Db |
| WARRANTY | S5000 transmitter 2 years XCell Sensors 3 years Passive comb., MOS, IR400 2 years Echem Sensors Varies by gas |
| APPROVALS | CSA, FM**, ATEX, IECEx,INMETRO, ABS, DNV-GL Marine, CE Marking. Complies with C22.2 No. 152, FM 6320, ANSI/ISA/CSA/IEC/EN 60079-29-1, ANSI/ISA 12.13.01. Suitable for SIL 2. |
| Dimensions | |
| HOUSING (W x H x D) | 6.37" x 5.38" x 4.25" (162 x 137 x 108 mm) |
| W/PASSIVE SENSOR | 6.37" x 7.62"x 4.25" (162 x 193 x 108 mm) |
| W/DIGITAL SENSOR | 6.37" x 10.4" x 4.25"(162 x 265 x 108 mm) |
| W/IR400 IR SENSOR | 14.8" x 6.0" x 4.25" (375 x 152 x 108 mm) |
| WEIGHT | 8 lb. (3.6 kg), 316 SS |
| Environmental Specifications | |
| OPERATING TEMPERATURE RANGE | Transmitter -55°C to +75°C CB (sintered, Zones) -40°C to +70°C CB (screened, Div) -40°C to +75°C MOS (sintered, Zones) -40°C to +70°C MOS (screened, Div) -40°C to +75°C IR (CSA) -40°C to +75°C IR (ATEX/IECEx) -60°C to +75°C XCell (Comb) -55°C to +60°C XCell (Toxic/O2) -40°C to +60°C |
| STORAGE TEMPERATURE RANGE | Housing, IR400,passive sensors -50°C to +85°C XCell sensors -40°C to +60°C |
| RELATIVE HUMIDITY (NON-CONDENSING) | XCell sensors, IR400, 10-95% Passive combustible 0-95% Passive H2S 15-95% |
| Mechanical Specifications | |
| INPUT POWER | 24 VDC nominal, 12 to 30 VDC |
| SIGNAL OUTPUT | Dual 4-20 mA current source or sink, HART, Modbus, Bluetooth. Optional: w/o Bluetooth |
| RELAY RATINGS | 5A @ 30VDC; 5A @220 VAC (3X) SPDT – fault, warn, alarm |
| RELAY MODES | Common, discrete, horn |
| NORMAL MAX POWER | Without Relays Passive comb: 5.0 W Passive MOS: 9.8 W IR400: 7.9 W XCell comb: 5.0 W XCell toxic & O2: 2.6 W IR400 + XCell comb: 10.8 W IR400 + XCell toxic or O2: 8.6 W Dual XCell toxic or O2: 3.3 W Dual XCell comb: 7.4 W XCell comb. + XCell toxic or O2: 5.7 W With Relays Passive comb: 6.0 W Passive MOS: 10.8 W IR400: 8.9 W XCell comb: 6.0 W XCell toxic & O2: 3.6 W IR400 + XCell comb: 11.8 W IR400 + XCell toxic or O2: 9.6 W Dual XCell toxic or O2: 4.3 W Dual XCell comb: 8.4 W XCell comb. + XCell toxic or O2: 6.7 W |
| STATUS INDICATORS | 4-digit scrolling LED, icons depicting fault, warn, alarm, Bluetooth, 1 and 2 to indicate sensor reading displayed |
| RS-485 OUTPUT | Modbus RTU, suitable for linking up to 128 units or up to 247 units with repeaters |
| BAUD RATE | 2400, 4800, 9600, 19200, 38400, 115200 |
| HART | HART 7, Device Description (DD) and Device Type Manager (DTM) available |
| FAULTS MONITORED | Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, calibration faults, analog output mismatch fault |
| CABLE REQUIREMENTS | 3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Accommodates up to 12 AWG or 4 mm2 |
